P3.91 outdoor rental led display

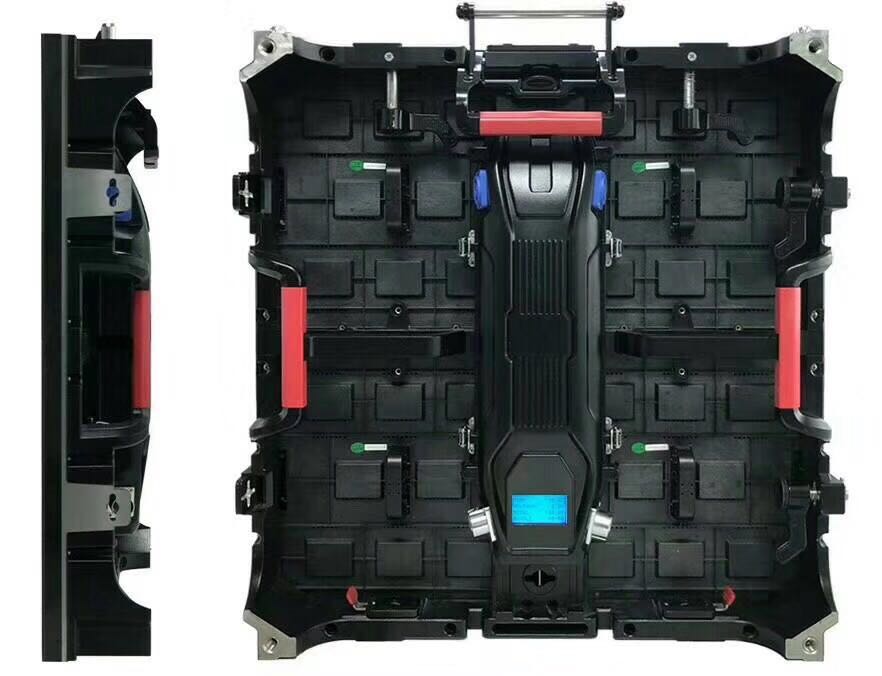

Cabinet size:500mm*500mm diecasting alumimum
Pixel density:65536pixels/sqm
Cabinet weight:9KG
- Compatiable cabinet ,and cabinet size can be 500mm*500mm/500mm*1000mm,compatiable with P2.6/P2.976/P3.91/P4.81 types.Suitable for the large stage hire nad the hotel wedding etc.This kind of cabinet meets the requirements of hoisting and stack installation.
- High refresh rate and high gray scale:Driving IC is MBI5124 which is more than 2000HZ
- Lightweighet cabinet:Diecasting alumimum construction with the feature of high strenth,strong ductility.High accuracy and not distortion.Cabinet thickness is only 81mm.Flight case package is convenient to move and install.
- Quick to install:Module size is 250mm*250mm,and four modules constitude one 500mm*500mm,One square meter only with four cabinets,each cabinet with fast locks,firstly lock,firstly spin,secondly push and thirdly tight,one cabinet can be installed finally.
- Easy to calculate:Cabinet size is 500mm*500mm/500mm*1000mm,suitable for led display with integral multiple square meter.
- Seamless splicing:Diecasting alumimum construction controls the stitching error between modules with 0.3mm.
- Wide view angle:Horizontal≥140°，Vertical≥120°
8.Good heat dissipation:easily realize independent coolingand low noise with excelent heat dissipation and design without external cooling fans or air condition etc.Lightweight cabinet,low installation cost,low power consuption and save operating cost.
| Pixel Configuration | 3.91 |
| Using environment | Outdoor |
| Pixel Density(Pixels/m²) | 65536 |
| Module Size(mm) | 250×250 |
| Module pixel | 64*64 |
| Brightness(cd/m²) | ≥5000 |
| Method scanning | 16S |
| Gray Scale | 14bit |
| Viewing Angle(H/V) | H:140/V:140 |
| Cabinet Size(mm) | 500x500x81 |
| Cabinet Material | Diecasting Aluminum |
| Cabinet weight | 8.5KG |
| Grayscale Level | ≥1920 |
| Operation Power | AC110~240 50/60Hz |
| Max Input Power(W/m²) | 550 |
| Average Input Power(W/m²) | 160 |
| Lifespan(H) | 100,000 |
| IP grade | IP65 |
