Outdoor slim fixed led display
Usage:Outdoor fixed
Brightness:5500cd/sqm
Parameters:
| Pixel Configuration | 8 | 10 |
| Using environment | Outdoor | Outdoor |
| Pixel Density(Pixels/m²) | 15625 | 10000 |
| Module Size(mm) | 320×160 | 320×160 |
| Module pixel | 32*16 | 32*16 |
| Brightness(cd/m²) | ≥5500 | ≥5500 |
| Method scanning | 4S | 4S |
| Gray Scale | 14bit | 14bit |
| Viewing Angle(H/V) | H:140/V:140 | H:140/V:140 |

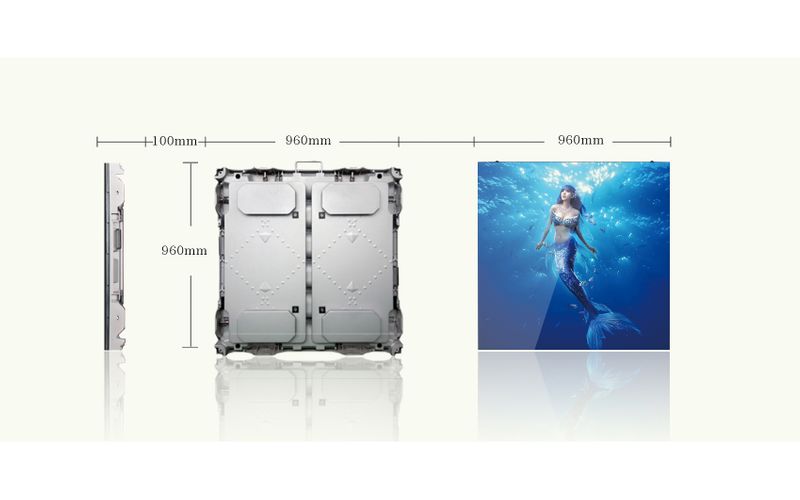

| Cabinet Size(mm) | 960x960x90 | 960x960x90 |
| Cabinet Material | Magnesium alloy | Magnesium alloy |
| Cabinet weight | 18KG | 18KG |
| Grayscale Level | ≥1200 | ≥1200 |
| Operation Power | AC110~240 50/60Hz | AC110~240 50/60Hz |
| Max Input Power(W/m²) | 625 | 800 |
| Average Input Power(W/m²) | 450 | 300 |
| Lifespan(H) | 100,000 | 100,000 |
| IP grade | IP65 | IP65 |
Main Features
1.Superlight—About 40% lighter than traditional aluminum cabinet;
2.Fastcooling–Excellent heat dissipation performance to protect the modular circuit;
3.Anti-interference—Special antielectromagnetic interference function;
4.High-strength —Tensile test to reach 300kg, more strength than aluminum;

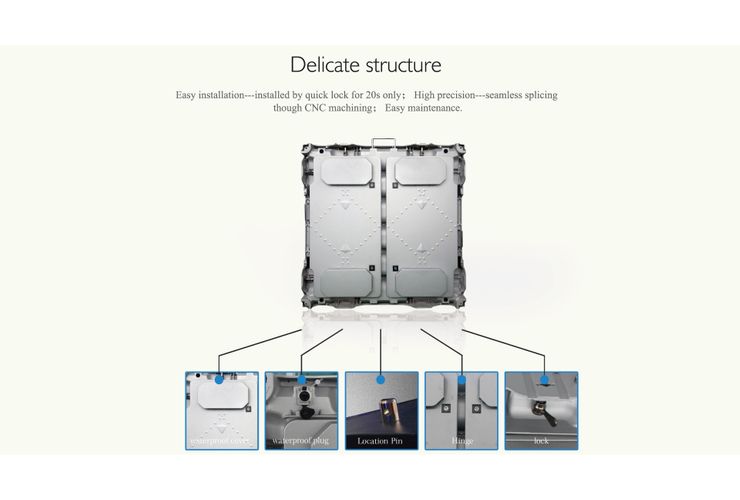

5.Easy installation—Special fast lock,only need 20s to install;
6.High precision—Seamless splicing after CNC processing;
7.High universality—Can be installed arbitrary hole machining, indoor and outdoor;
8.High cost-effective—Complete production and supply chain.
9.Available for P5,P8,P10
